FN-12 11kv Indoor Air Load Break Switch High Voltage

Brand Name : XG

Model Number : FN12

Certification : ISO,CCC

Place of Origin : XIAN

MOQ : 1 SET

Price : USD200-1000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 SETS

Delivery Time : 3-7 DAYS

Packaging Details : WOODEN CASE

Type : indoor

Rated Voltage : 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV

Rated Current : 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A

Frequency : 50/60Hz

Poles Number : 3

Medium : vacuum

Material : galvanized sheet and accessories

Certificate : ISO CCC

Contact Now

1.FN-12 12kv indoor high voltage load switch

FN-12 11kv Indoor Air Load Break Switch High Voltage

2.Technical data

Rated voltage KV	Rated current A	Power frequency withstand voltage KV	Heat stabilized current KA	Dynamic current KA	Short-circuit closing current KA	Rated breaking current A	Rated transfer current A
12	400	42/48	12.5	31.5	31.5	400	1000
12	630	42/48	50	50	50	630	1000

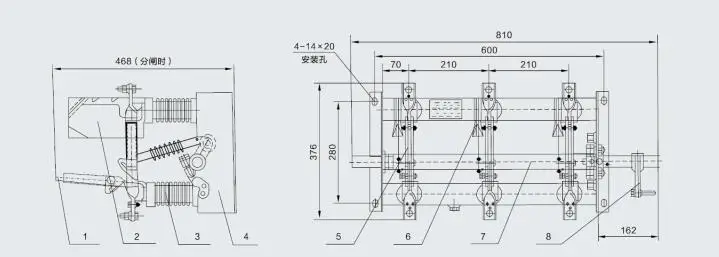

3.Drawing

FN-12 11kv Indoor Air Load Break Switch High Voltage

4.Factory

5.Our service:

FN-12 11kv Indoor Air Load Break Switch High Voltage

6.Certificate

FN-12 11kv Indoor Air Load Break Switch High Voltage

7.FAT

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
